| MOQ: | 1000 Square Meters |
| Price: | USD 15 Square Meter |
| Standard Packaging: | Barrel / Pallet / Bag |
| Delivery Period: | 7 work days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10000 Square Meter Per Week |

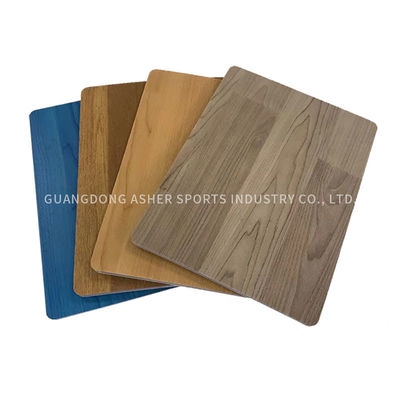

Indoor PVC Flooring for Badminton Tennis Basketball No Volatile Organic Compounds
Product Details
|
DESCRIPTION
|
STANDARD | REQUIREMENT |
UNIT
|
TEST RESULTS |
| Thickness | EN 428 | - | mm | 3.5-8 |
| Abrasion resistance | EN ISO5470-1 | <1000 | mg | <350 |
| Ball bounce | EN 12235 | >90 | % | >90 |
| Impact resistance | EN 1517 | >80 | N/m | >8 |
| Fire rating | GB 8624-2012 | - | - | B1(C-s1, t0) |
PVC surface layer introduction
The internationally recognized PVC pitch uses 100% new material, no DOP, no heavy metals, zero methanol;
In line with European Union testing standards, added adsorption factor in the production process, so that TVOC emissions less than 100μg/m³, no harm to the human body; Easy future maintenance;
Suitable for indoor basketball court, tennis court, volleyball court, badminton court and other professional competition venues.
Stadium Standard Specifications
(1) Boundary color: white.
(2) Court color: Different colors are required for the court area and buffer area, with green for the regular home court and red for the secondary court.
(3) The courts are divided into indoor and outdoor types, and indoor courts can be shared with volleyball courts.
(4) Outdoor venues generally require a north-south orientation of the long axis.
Product features
(1) Good weather resistance, water resistance, with high density, good stability, good wear resistance and professional Antiskid property;
(2) super stability, the floor does not shrink deformation;
(3) Anti-bacterial and antibacterial treatment to inhibit the growth of mold;
(4) Good resilience and better protection of athletes' ankle and knee joints;
(5) Suitable for concrete and asphalt foundation.
Preparation for PVC floor adhesive installation:
1. Technical preparation
(1) Carefully familiarize and review the floor construction drawings.
(2) Clarify the construction content and analyze the characteristics of the project.
(3) Provide technical clarification to the operators regarding the requirements for the exhibition hall floor.
2. Tool preparation
Main tools: serrated scraper, drum, cutting tool, oil brush, cutting blade, scissors.
3. Labor preparation
Due to the professionalism of PVC flooring installation engineering, a fixed professional team is used for construction and installation. The members of the team have years of experience in flooring construction to ensure the quality of the project construction.
4. Material preparation
(1) The floor material of the project is PVC coiled material: the board surface is required to be flat and smooth, without cracks, uniform color, consistent thickness, and meet the design requirements and relevant Technical Standard Order.
(2) The adhesive is required to be quick drying, high adhesive strength, strong water resistance, environmentally friendly, non-toxic and water-based adhesive, and comply with relevant Technical Standard Order.
(3) Material transportation, inventory needs to be stored vertically
It should not be placed flat or overlapped to avoid deformation of PVC rolls. It should not be stored in damp or sunny places to avoid discoloration and uneven color of the board surface. The adhesive should be stored separately, fireproof, and protected from sunlight exposure.
PVC construction process:
Base treatment>Self leveling construction pre laying>P V C installation>Joint welding>Site cleaning
1. Grassroots treatment
(1) After the installation of walls, ceilings, doors and windows, clean and sweep away any debris on the ground.
(2) Remove sand, oil stains, residues, etc. from the surface of the base layer.
(3) Clean the ground of dust and sand.
(4) After thoroughly cleaning the ground, evenly roll and apply a layer of interface agent.
2. Self leveling construction (this process can be selected according to actual needs)
(1) Check whether the cement self-leveling meets relevant technical standards, and expired self-leveling shall not be used.
(2) Pour an appropriate amount of self-leveling into a solvent and dilute it with clean water according to the product instructions.
(3) Mix thoroughly until the cement flows smoothly into a liquid state.
(4) Pour the self-leveling layer onto the construction ground in sequence, scrape it flat with a rake tooth scraper, with a thickness of approximately 2-3mm.
(5) Pedestrians and stacked items are not allowed within 4 hours after the completion of self leveling construction.
Stadium size specifications
1. The size within the main functional line (excluding the functional line) is a standard fixed size;
2. The overall size of the site can be adjusted ± according to the actual situation on site;
3. If the site size is limited, separate drawings can be provided according to the actual situation.
Acceptance handover
1. Based on the actual situation on site, check whether it is flat and smooth, and conduct acceptance according to relevant specifications and quality standards. Acceptance can be carried out according to the plastic board surface layer and manufacturer's standards in the "Code for Construction and Acceptance of Building Ground Engineering (GB50209-2002)".
2. The acceptance requirements for laying quality are as follows:
(1) Flat, with no damage to the surface, and the seam line horizontal and vertical, without gaps, flipping, warping, or bubbles;
(2) Match along the edge of the wall, keep the upper wall straight, and ensure that the height of the skirting line is flush and firm, without any leakage or detachment of adhesive. The weld seam is flush and firm.
|
|
